LCC40 Connectivity Module

Overview

The LCC40 is a series of LTE Cat 1 bis modules optimized for IoT and M2M applications requiring reliable and cost-effective 4G connectivity. Built on Qualcomm’s QCX216 LTE IoT chipset and compliant with 3GPP Release 14 specifications, the module delivers data rates of up to 10 Mbps downlink and 5 Mbps uplink, providing the ideal balance between performance, power efficiency, and integration flexibility.

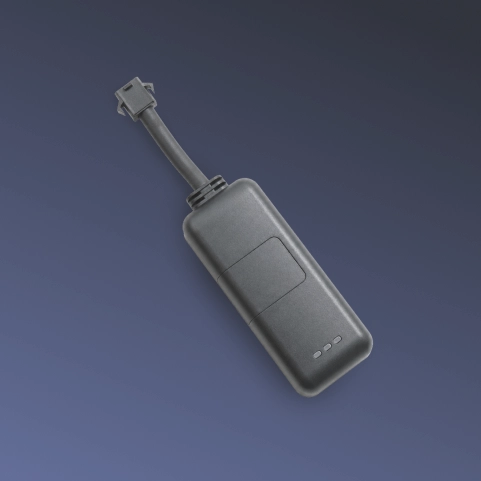

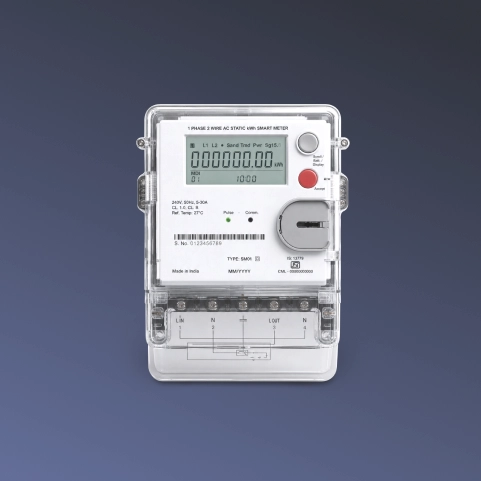

Its compact LGA + LCC form factor and single-antenna architecture help simplify product development while reducing hardware costs. Designed for long lifecycle deployments, LCC40 enables seamless connectivity for smart metering, asset tracking, telematics, payment solutions, and industrial IoT applications.

Key features

LTE Cat 1 bis
3GPP Release 14 Compliant
Compact LGA + LCC Package
Single LTE Antenna Architecture
Low Power Consumption
Power Saving Modes
USB 2.0 High-Speed Interface
Built-in IPv4/IPv6 Support
DFOTA Support
Small Form Factor Design
Optimized for Cost-Sensitive IoT Deployments
TCP, UDP, MQTT(S), HTTP(S), FTP(S), SSL, PPP, NTP and NITZ Support

Specifications

Parameter	Specification
Processor	ARM Cortex M3 @ 204 MHz
RAM	1.25 MB
Flash	4 MB
OS	FreeRTOS (CMSISv2)
Technology	LTE Cat 1 bis
3GPP Release	Release 14
Frequency Bands	B1 / B3 / B5 / B8 / B40 / B41
Max Data Rate	DL 10 Mbps / UL 5 Mbps
Package	LGA + LCC
Dimensions	17.7 × 15.8 × 2.3 mm
Pin Count	109
Supply Voltage	3.6V – 4.2V (3.8V Typical)
Wi-Fi Scan	Supported
DFOTA	Supported
USB	USB 2.0 High Speed
Operating Temperature	-20°C to +85°C
Extended Temperature	-45°C to +90°C
