Isolated Gate Driver

Overview

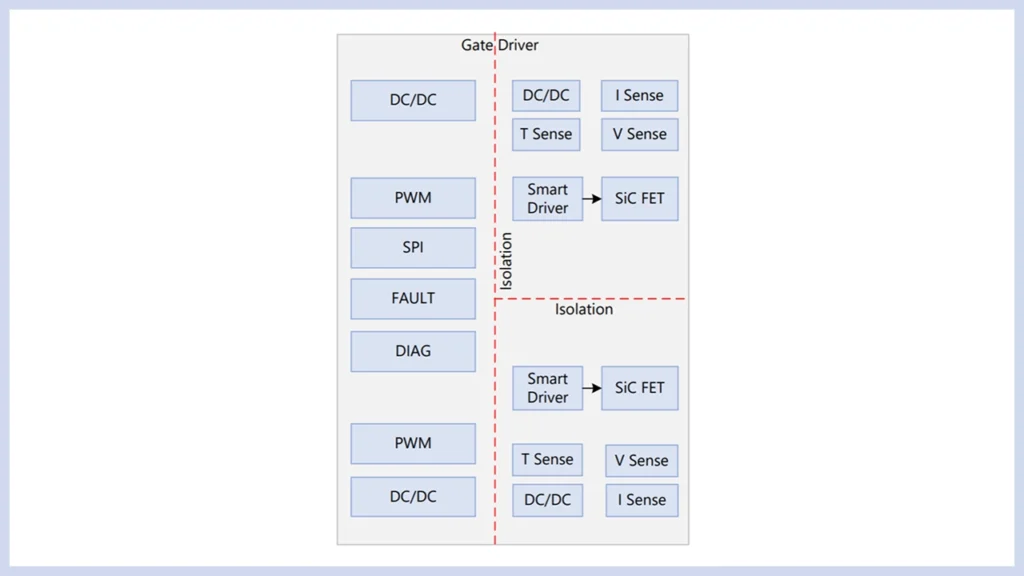

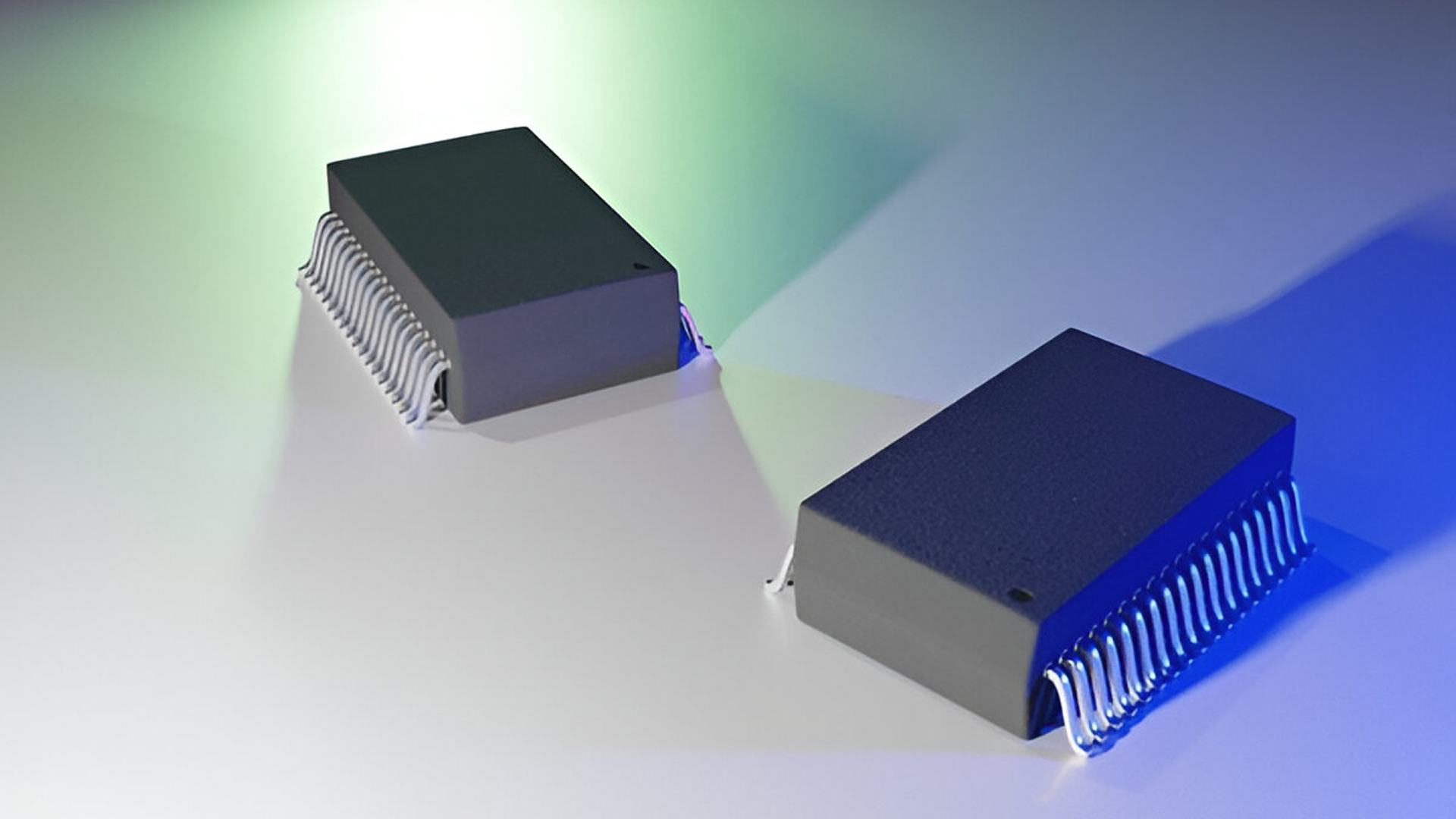

Introducing our advanced isolated SiC/IGBT driver, designed to support up to 1200 V with external SiC/IGBT FETs. This driver features smart functions such as PWM switching during runtime and adjustable active filtering for improved efficiency. It includes DESAT protection, an active Miller clamp, and ultra-fast response time to eliminate delays from the isolation barrier.
The integrated DC/DC isolation supply enhances overall system reliability, while active discharge of the DC link capacitor eliminates the need for external circuitry. Combined with comprehensive diagnostic capabilities, the solution ensures robust performance and safe operation across high-voltage environments.

Saves board space without compromising on safety (creepage and clearance)

Maximum FET protection with high-side sensing and real-time diagnostics

Ultra fast response time
eliminates delays from
isolation barrier

Digital readout of diagnostic
fully software configurable

Integrated EEPROM and control logic – reduces MCU processing load
