ProductsPower ManagementPower Modules & DiscreteDiscrete SiC

Overview

LTSCT’s application of SiC FETs offers numerous benefits for high-frequency power applications. These SiC FETs deliver high efficiency by reducing switching losses and improving overall energy conversion. They operate at higher switching frequencies than traditional silicon-based IGBTs, significantly enhancing performance while minimising energy loss.

In addition to their efficiency, the SiC FETs feature robust thermal management capabilities that ensure stable operation under high-power conditions and extend component lifespan. They provide a scalable solution that supports various power classes and motor types, making platform migration easier and reducing design complexity.

Key features

Optimised Performance

  • Very Low On-Resistance
  • Optimised Switching Behaviour
  • Layout optimisation for easy processing

Very Low On-Resistance

Optimised Switching Behaviour

Layout optimisation for easy processing

High Reliability and Robustness

  • High oxide reliability
  • High temperature rating (up to 200 C for bare dies)

High oxide reliability

High temperature rating (up to 200 0C for bare dies)

Easy to use

  • Flexible and simple to drive
  • Gate resistors optimised for application

Flexible and simple to drive

Gate resistors optimised for application

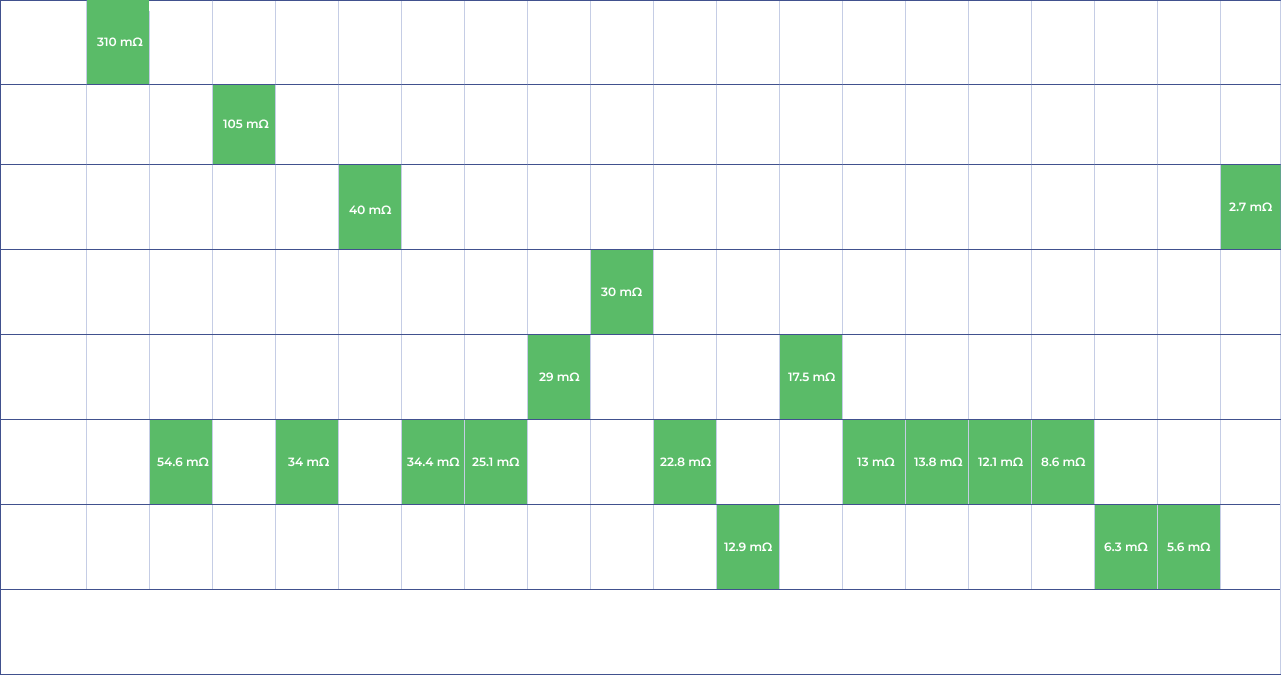

Product line-up

Technical resources

LTSCT Part Number Voltage (V) Current (A) Rdson (mohm) Package Sample Availability Datasheet
LTQ1SICM0K95T07509512.9TO-263-7 3 months from request Available
LTQ1SICM0K2AMO-H7502006.4Available as bare die 4 months from request Available
LTQ1SICM0K2AMO7502006.3Available as bare die 4 months from request Available
LTQ1SICM0K2BMO7502255.6Available as bare die 4 months from request Available
LTQ1SICM0L27MO120027.554.6Available as bare die 3 months from request Available
LTQ1SICM0L35T012003533.0Available as bare die 4 months from request Available
LTQ1SICM0L44T0120044.334.0TO-263-7 4 months from request Available
LTQ1SICM0L55MO12005532.4Available as bare die 3 months from request Available
LTQ1SICM0L60T012006025.1TO-263-7 3 months from request Available
LTQ1SICM0L75T012007513.9Available as bare die 4 months from request Available
LTQ1SICM0L1CMO120012513.0Available as bare die 4 months from request Available
LT1SICM0L1BMO120012512.4Available as bare die 4 months from request Available
LTQ1SICM0L1BT0120015913.8Available as bare die 4 months from request Available
LTQ1SICM0L1DMO12001758.6Available as bare die 4 months from request Available
LTQ1SICM0L88T0120018322.8Available as bare die 4 months from request Available
LTQ1SICM0L1EMO120020012.1Available as bare die 4 months from request Available
LTQ1SICM0P08T017008029.1Available as bare die 4 months from request Available
LTESICM0P1CT0170012017.5Available as bare die 4 months from request Available
LTESICM0P1CMO170013617Available as bare die 4 months from request Available
LTESICM0R83MO23008330Available as bare die 4 months from request Available
LTESICM0R1CMO230012323Available as bare die 4 months from request Available
LTESICM0S52MO33005240Available as bare die 4 months from request Available
LTESICM0S52MO-H33005253Available as bare die 4 months from request Available
LTESSGB0S6AMO33006002.7Power Module 4 months from request Available
LTESICM0S90MO33009445Available as bare die 4 months from request Available
LTESICM0U30MO650030105Available as bare die 4 months from request Available
LTESICM0Y20MO10K20310Available as bare die 4 months from request Available
