Overview

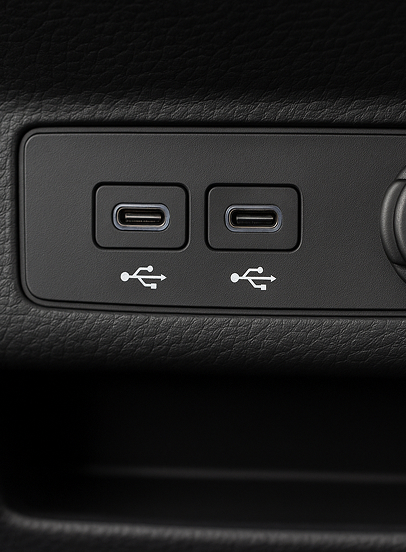

The UPD21224FC Dual Port USB Power Delivery (PD) Charger is a compact, high-performance device delivering up to 340 W total power from a 12 V automotive battery. Featuring 100 W integrated buck-boost MOSFETs and a 240 W external power stage, it is fully USB-PD 3.2 v 1.1 compliant and supports both stand-alone and networked operation in automotive environments. The UPD21224FC integrates I2C, UART, and LIN communication interfaces, a RISC-V microcontroller with hardware cryptography and OTA update capability, and supports both PPS and proprietary charging protocols for maximum compatibility.

Advanced adaptive power sharing ensures efficient distribution between ports, while comprehensive protection features guard against ESD, corrosion, battery transients, over-/under-voltage, short circuits, and overcurrent. Versatile USB data and video support, along with customisable GPIOs for functions such as dimmable LED lighting, make the UPD21224FC ideal for modern automotive charging and connectivity needs.

Key features

USB Type-C PD charging up to 100 W internal buck-boost, additional controller for an external power stage

Universal source-only controller supports all standards

  • BC1.2, UFCS, SVOOC, Apple, AFC, QC1.0-5.0

High efficiency, low EMI integrated DC-DC controller with enhanced protections

USB Type-C PD 3.2 compliant with Q100 qualification

Extendable to multi-port as a master and slave config

Field-upgradable FW through USB-C port or OTA with internal MTP NVM

Integrated RISC-V MCU with H/W accelerators

Integrated Reverse Polarity Protection nFET gate drive

Operation under cold and warm crank conditions (VIN > 3.2 V)

AEC-Q100 qualified to Grade 1, Temp Range: -40 °C to +125 °C

7×7 QFN flip-chip on lead wettable flank package

Integrated robust ESD/EMI/EMC

Handle load dump (up to 40 V)

Specifications

Power Delivery & Charging
Protocol Support & Compatibility
Control & Firmware Management
Protection & Reliability
Qualification & Environmental Specs
Power Delivery & Charging
  • USB Type-C PD Charging: Supports up to 100 W
  • PD Compliance: USB Type-C PD 3.2 compliant with AEC-Q100 qualification
  • Power Architecture:
    – Internal buck-boost controller
    – Additional controller support for external power stage
  • Integrated DC-DC converter: High-efficiency, low EMI, with advanced protection features
Protocol Support & Compatibility
  • Universal source-only controller: Supports all major fast-charging standards:
    – BC1.2, UFCS, SVOOC, Apple, AFC, QC 1.0–5.0
  • Scalability: Extendable to multi-port operation with master/slave configuration
Control & Firmware Management
  • Embedded Controller: Integrated RISC-V MCU with hardware accelerators
  • Firmware Upgrade Support:
    – Via USB-C port (field-upgradable)
    – OTA (Over-the-Air) updates using internal MTP NVM
Protection & Reliability
  • Reverse Polarity Protection: Integrated nFET gate drive
  • EMC Protection: Built-in ESD, EMI, and EMC protection
  • Load Dump Handling: Capable of withstanding transients up to 40 V
  • Cold/Warm Crank Operation: Reliable performance with VIN > 3.2 V
Qualification & Environmental Specs
  • Automotive Qualification: AEC-Q100 Grade 1
  • Operating Temperature Range: -40 °C to +125 °C
  • Package: 7×7 mm QFN flip-chip with lead wettable flanks

Block diagram
